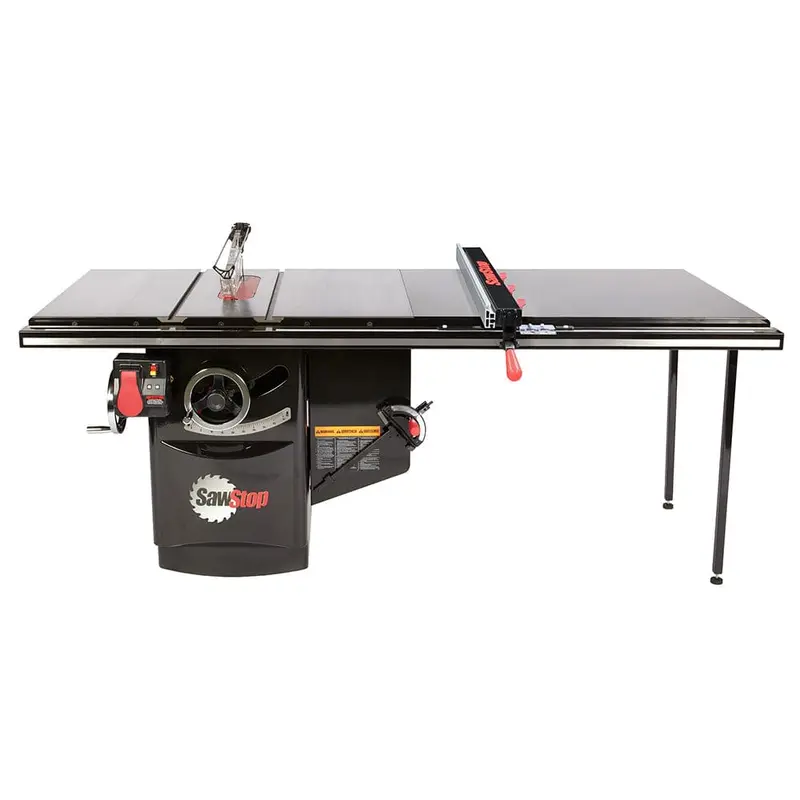

Built for demanding professionals, the SawStop 5 HP Industrial Cabinet Saw with 36″ T-Glide Advance Fence System delivers maximum power, precision, and safety. Whether you’re tackling heavy hardwoods or production-level volume, this saw is engineered to meet the highest expectations for accuracy, strength, and peace of mind.
The 5 HP motor, powered by a 230V single-phase connection, provides the muscle needed for continuous, high-performance cutting. The 36″ Industrial T-Glide Advance Fence System ensures smooth operation, dependable lockdown, and precise alignmentideal for tight-tolerance woodworking.
What truly sets this saw apart is SawStops patented safety system. If skin comes into contact with the blade, it stops within 5 milliseconds, drops below the table, and minimizes injury. This makes it a powerful investment in both your craft and your safety.
Features:
- SawStops patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Dust-Collection Blade Guard
- 36″ Industrial T-Glide Advance Fence System
Specifications:
- Overall saw dimensions: 69-1/4″ wide x 36-1/2″ deep x 34″ high
- Cabinet footprint: 20″ x 25″
- Cast-iron table: 24″ w x 30″ d
- Cast-iron table size with extension wings: 44″ w x 30″ d
- Motor: 5 HP, 1-Phase, 230V 60 HZ
- Weight: 635 lbs.
- Blade: 60-tooth, professional grade, 5/8″ arbor
- Blade diameter: 10″
- Blade tilt: left
- Blade kerf: 0.118″ (3mm)
- Blade plate thickness: 0.078″
- Max. depth of cut, blade at 0: 3-1/8″
- Max. depth of cut, blade at 45: 2-1/4″
- Max. rip, left of blade: 12-1/2″
- Dado diameter: 8″ (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16″
- Arbor diameter at blade: 5/8″
- Table in front of blade (max. elevation): 11″
- Table behind blade (max. elevation): 9-3/4″
- Table flatness measured diagonally: 0.010″ maximum gap
- Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
- Dust-collection port diameter: 4″
- Riving knife/splitter thickness: 0.090″ (2.3 mm)
- Insert: zero clearance, phenolic core, melamine surfaces
- Belts: 2 V-ribbed belts
What’s Included:
- (1) SawStop Industrial Cabinet Saw with 36″ Industrial T-Glide Advance Fence System – 5 HP – 1PH – 230V
Unconditional Satisfaction Guarantee
